View RP

Displays RP information.

View RP Screen

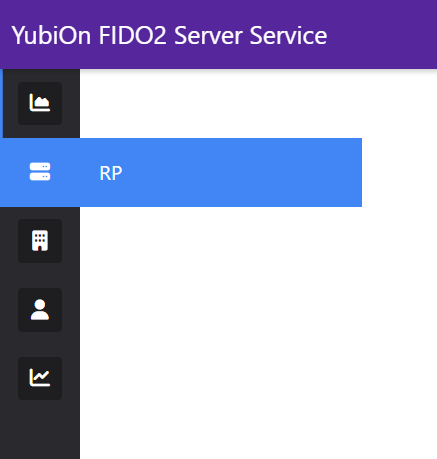

1. Click on “RP” from the menu.

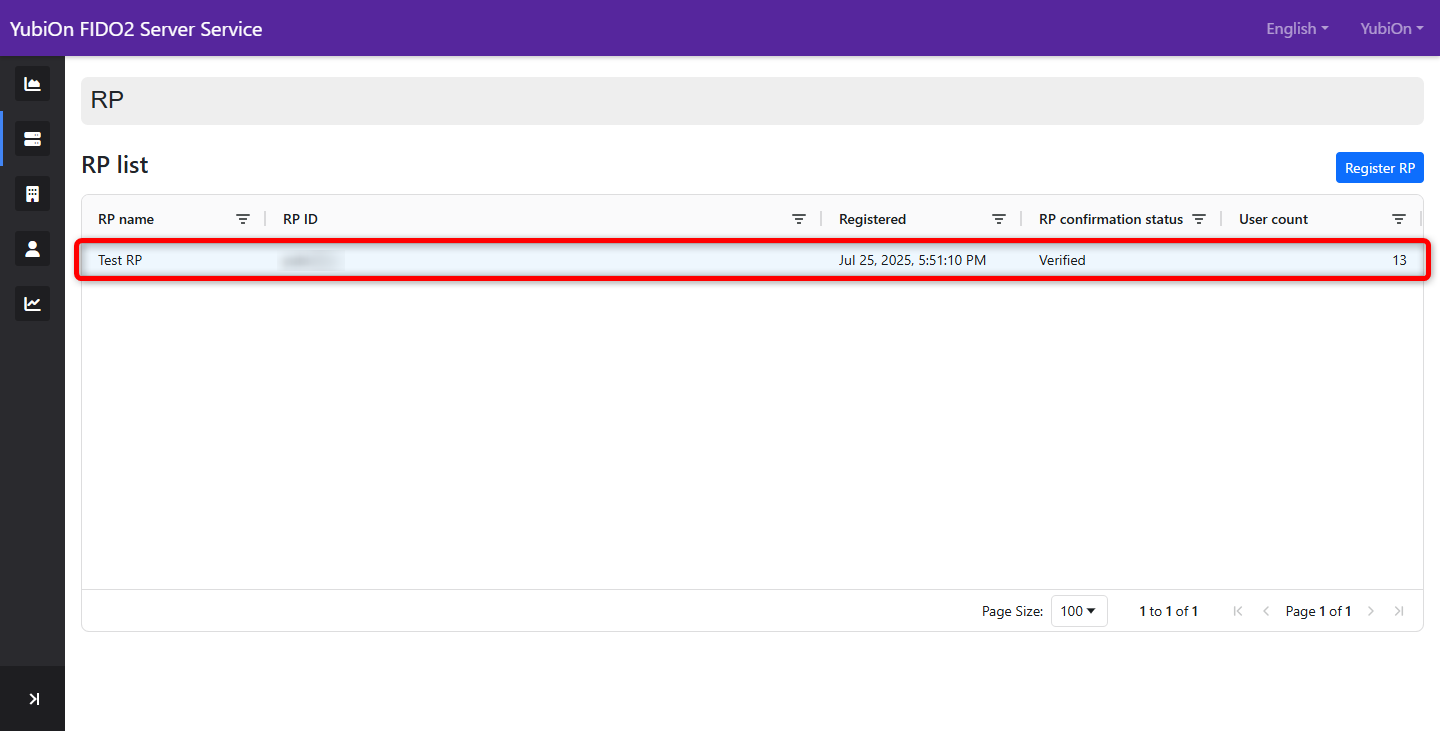

2. The RP screen opens, listing the RP’s information.


Descriptions

• Register RP button
  This button registers a new RP.

RP list

• RP name
  Name of RP.
• RP ID
  An ID that uniquely represents an RP. Usually a domain name is used.
• Registered
  The date and time the RP was registered.
• RP confirmation status
  Indicates whether the RP ID has been verified.
• User count
  Indicates the number of users using the RP.

View RP details

1. On the RP screen, click on the row of the target RP in the RP list.

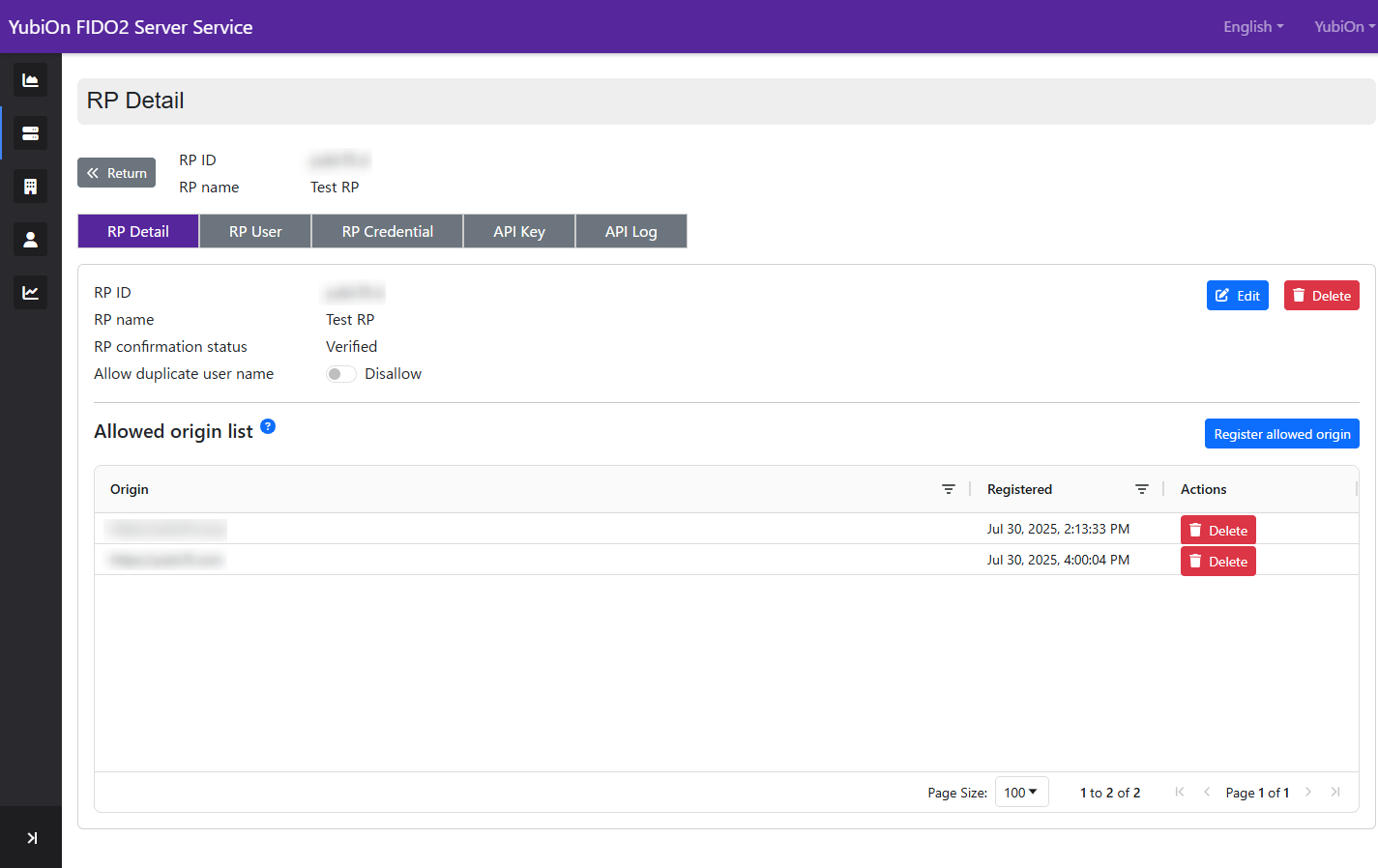

RP Details tab

• RP Edit button
  This button edits the RP name.
• RP Delete button
  This button deletes RP information.
• RP ID
  An ID that uniquely represents an RP. Usually a domain name is used.
• RP name
  Name of RP.
• RP confirmation status
  Indicates whether the RP ID has been verified.
• Allow duplicate user name
  When registering RP users, this setting determines whether or not users with the same name are allowed to register.
• Allowed Origin Registration button
  This button is used to edit RP information.

Allowed origin list

• Origin
  Allowed domain name that is different from the RP ID used during authentication.
• Registered
  The date and time the origin was registered.
• Actions
  • Delete button: This button deletes an allowed origin.

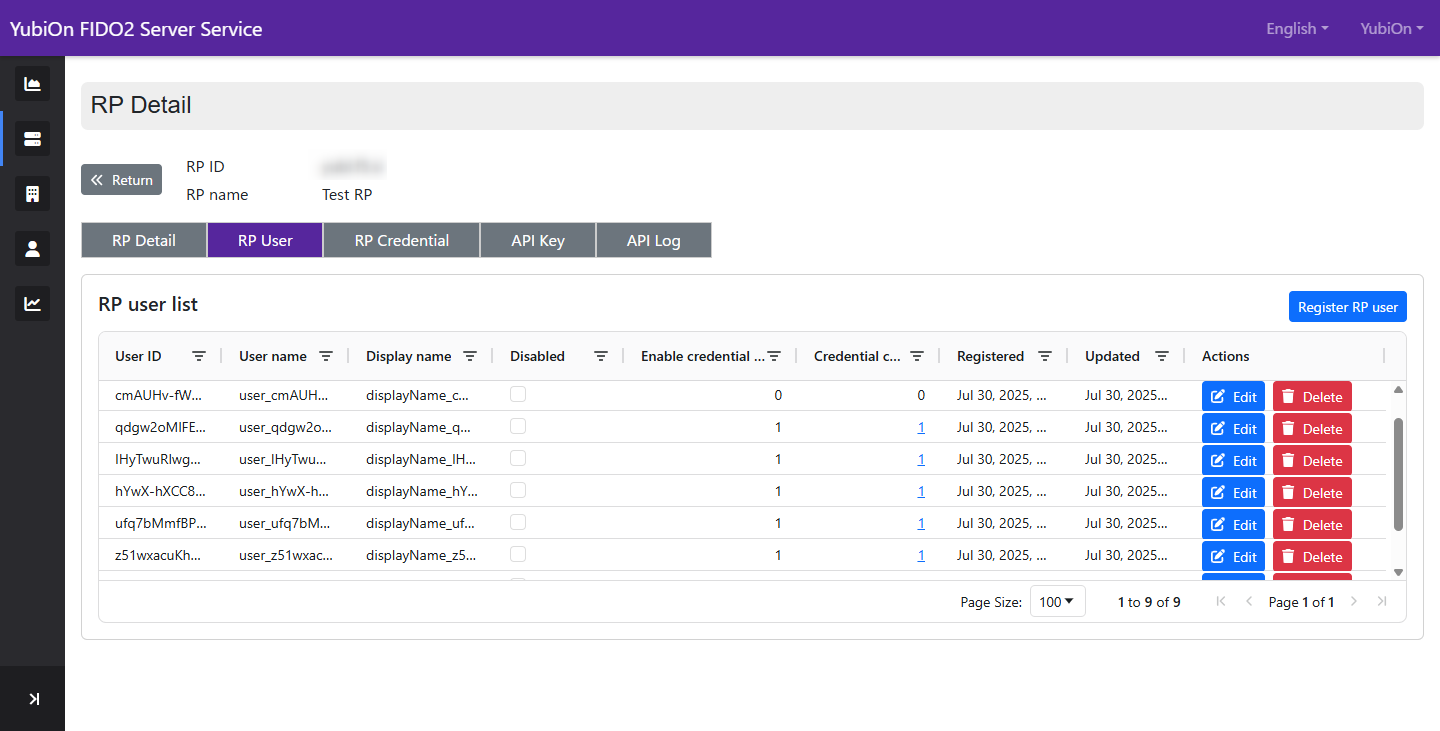

RP User tab

RP user list

• Register RP user button
  This button registers RP users.
• User ID
  User ID used for authentication.
• User name
  User name.
• Display name
  Display name of the user.
• Disabled
  Displays the disabled status of the user.
• Enable credential count
  The number of valid credentials used by RP users.
• Credential count
  The number of all credentials used by RP users.
  Clicking on one or more links will display the RP credentials of the target user.
• Registered
  The date and time the RP user information was registered.
• Updated
  The date and time the RP user information was updated.
• Action
  • Edit button: This button edits RP user information.
  • Delete button: This button deletes RP user information.

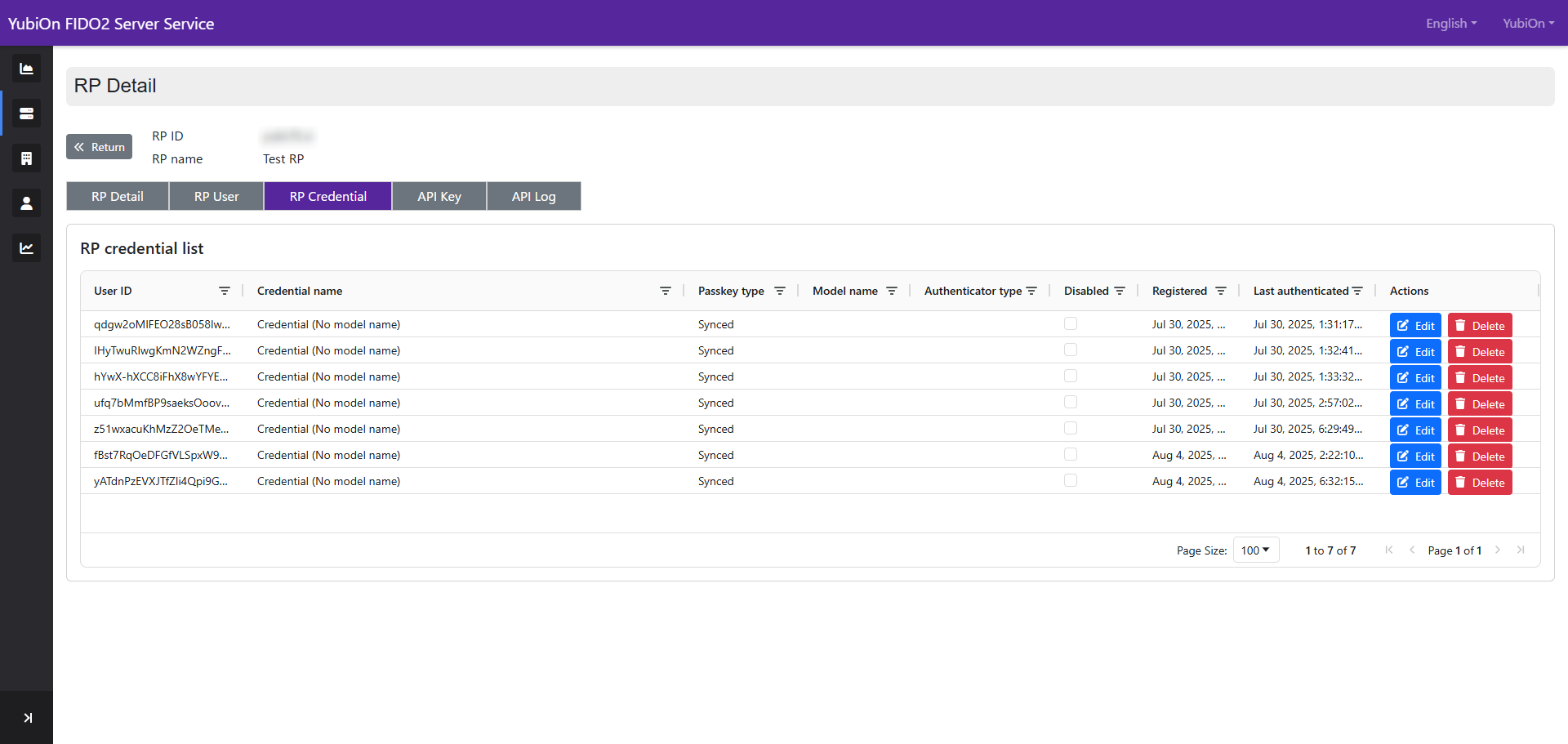

RP Credential tab

RP credential list

• User ID
  User ID used for authentication.
• Credential name
  Name of credential.
• Passkey type
  Type of passkey.
• Model name
  The model name of the authenticator.
• Disabled
  Indicates the invalid state of the authenticator.
• Registered
  The date and time the credential was registered.
• Last authenticated
  The date and time the credential was last authenticated.
• Action
  • Edit button: Edit RP credential information.
  • Delete button: Delete RP credential information.

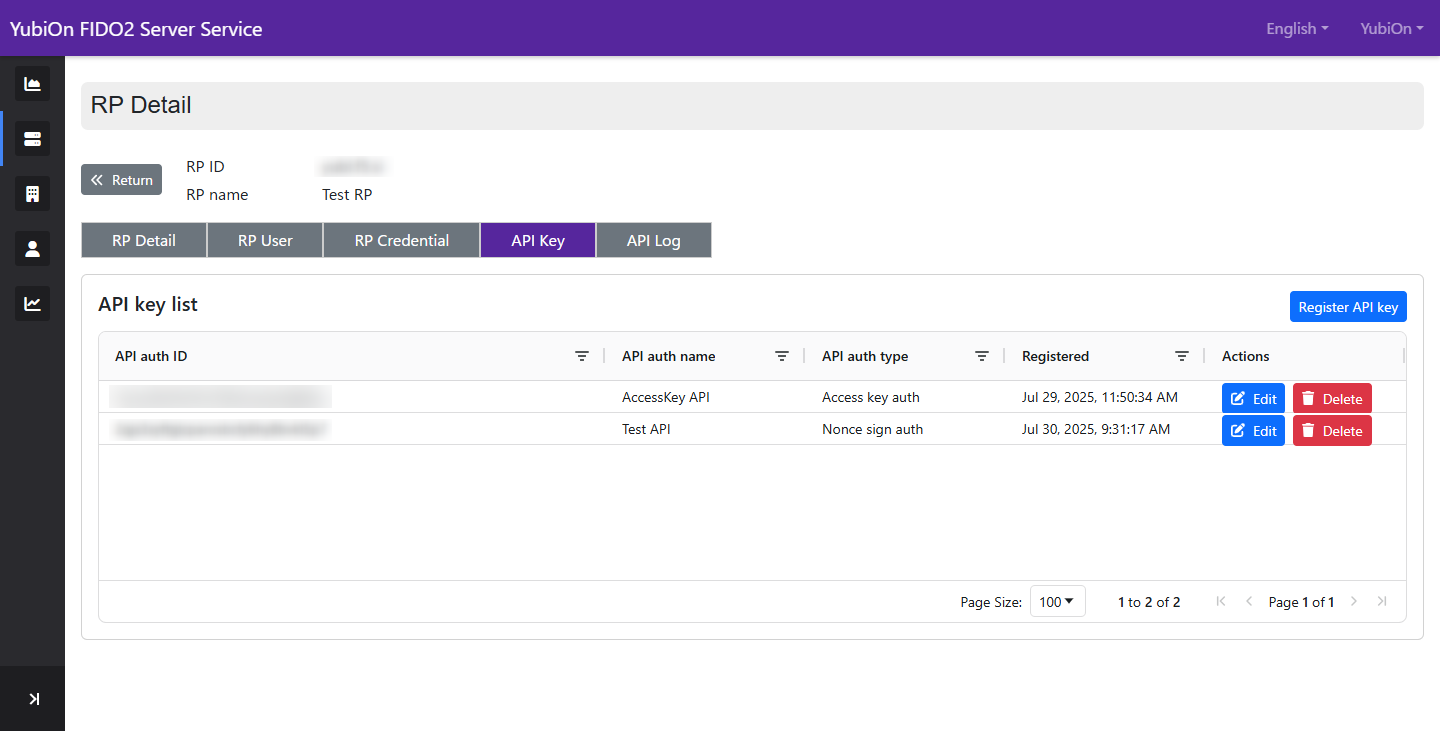

API Key tab

• Register API key button
  This button registers the API key.

API key list

• API auth ID
  ID of the API key.
• API auth name
  Name of the API key.
• API auth type
  Type of API key.
• Registered
  The date and time the API key was registered.
• Action
  • Edit button: Edit RP credential information.
  • Delete button: Delete RP credential information.

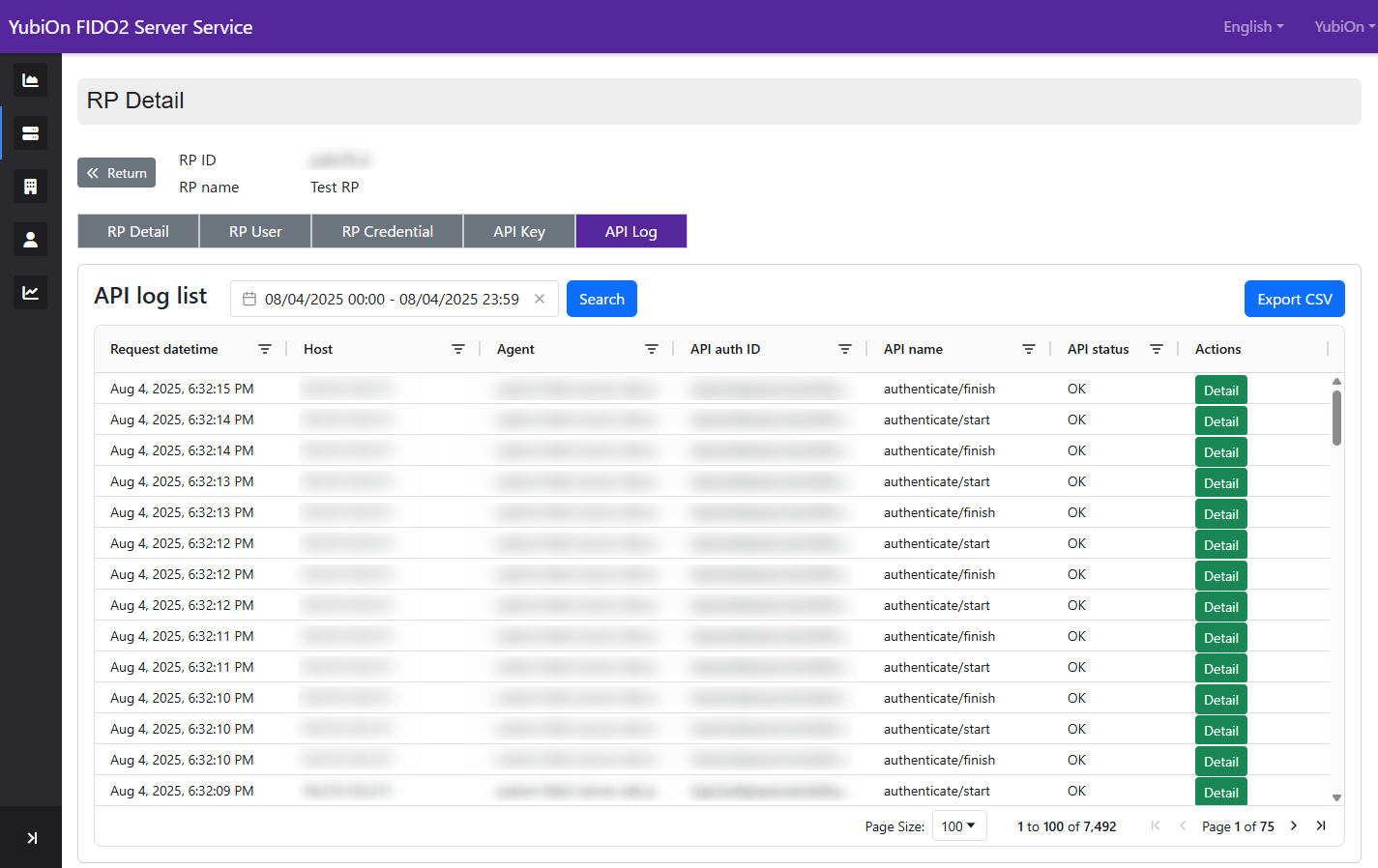

API Log tab

• Search button
  This button narrows down the API logs.
• Export CSV button
  This button exports API logs in CSV format.

API log list

• Request datetime
  The date and time the API was invoked.
• Host
  The host name from which the API was invoked.
• Agent
  API agent.
• API auth ID
  ID of the API key.
• API name
  The name of the API that was invoked.
• API status
  The result of an API call.
• Action
  • Detail button: Displays detailed API log information.
