View Activity Log

This section describes the operation of viewing the activity log on the Dashboard screen.

To view the activity log

Operation Procedure

Select “Dashboard” from the menu. menu menu

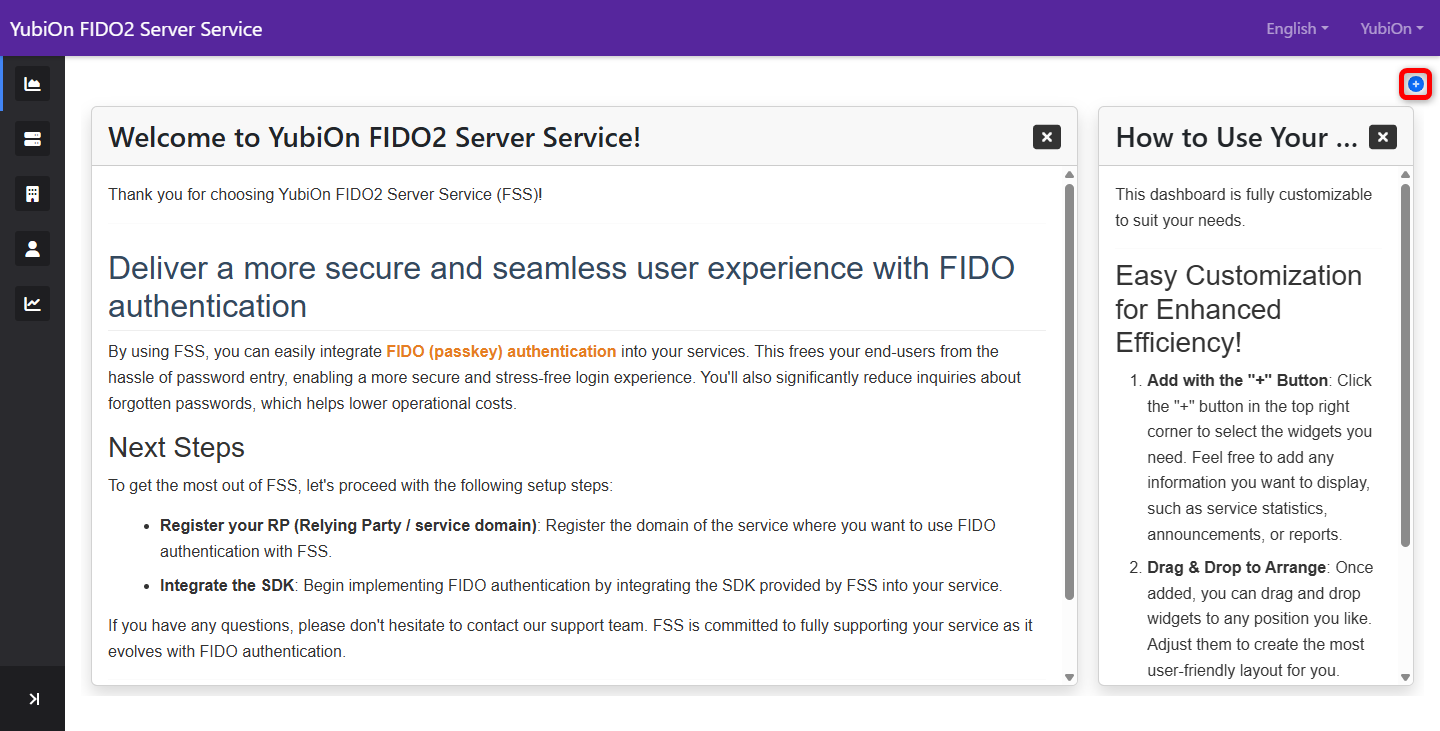

  1. Click on the Add icon on the right part of the “Dashboard” screen. add icon add icon

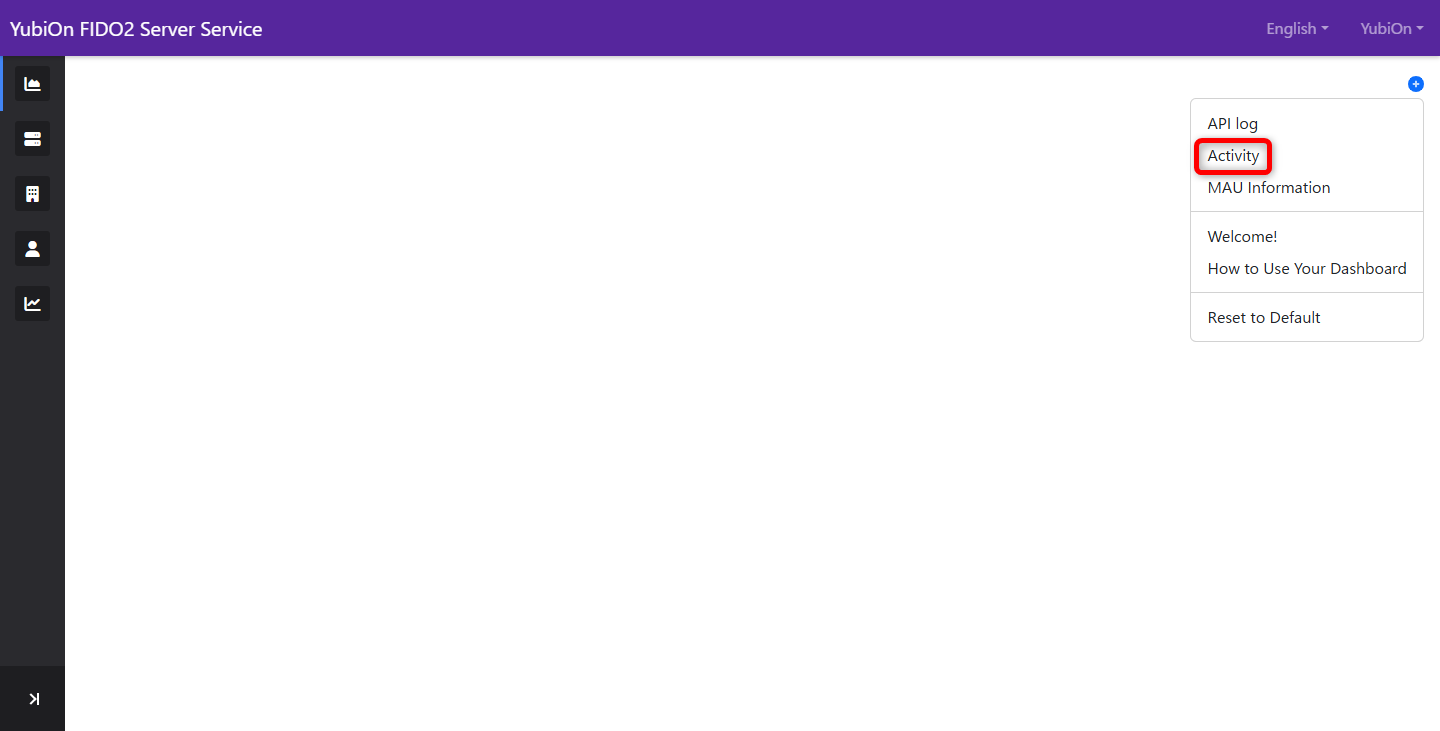

  2. Click on “Activity”. activity activity

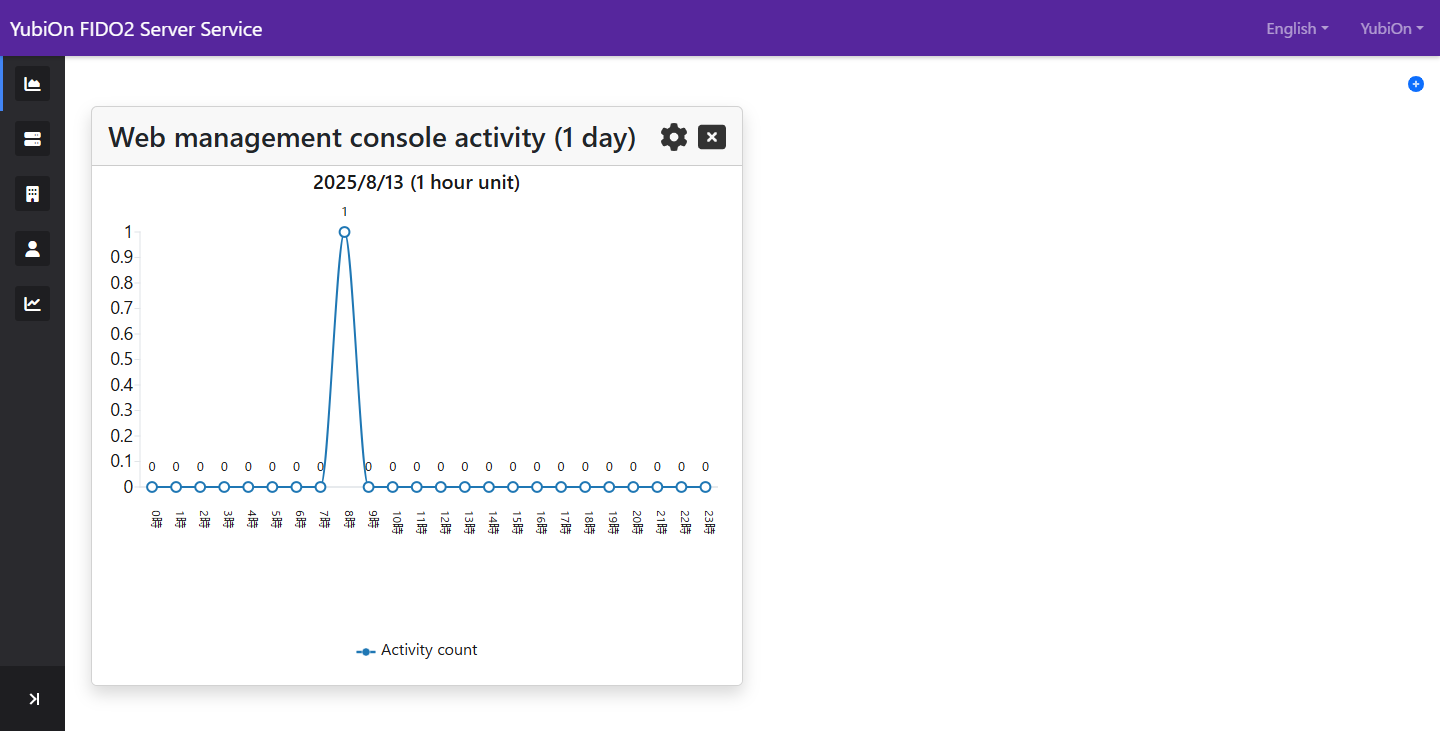

  3. A “Web management console activity” widget will be added on the dashboard. widget widget

To change the display period of the activity log

Operation Procedure

Select “Dashboard” from the menu.

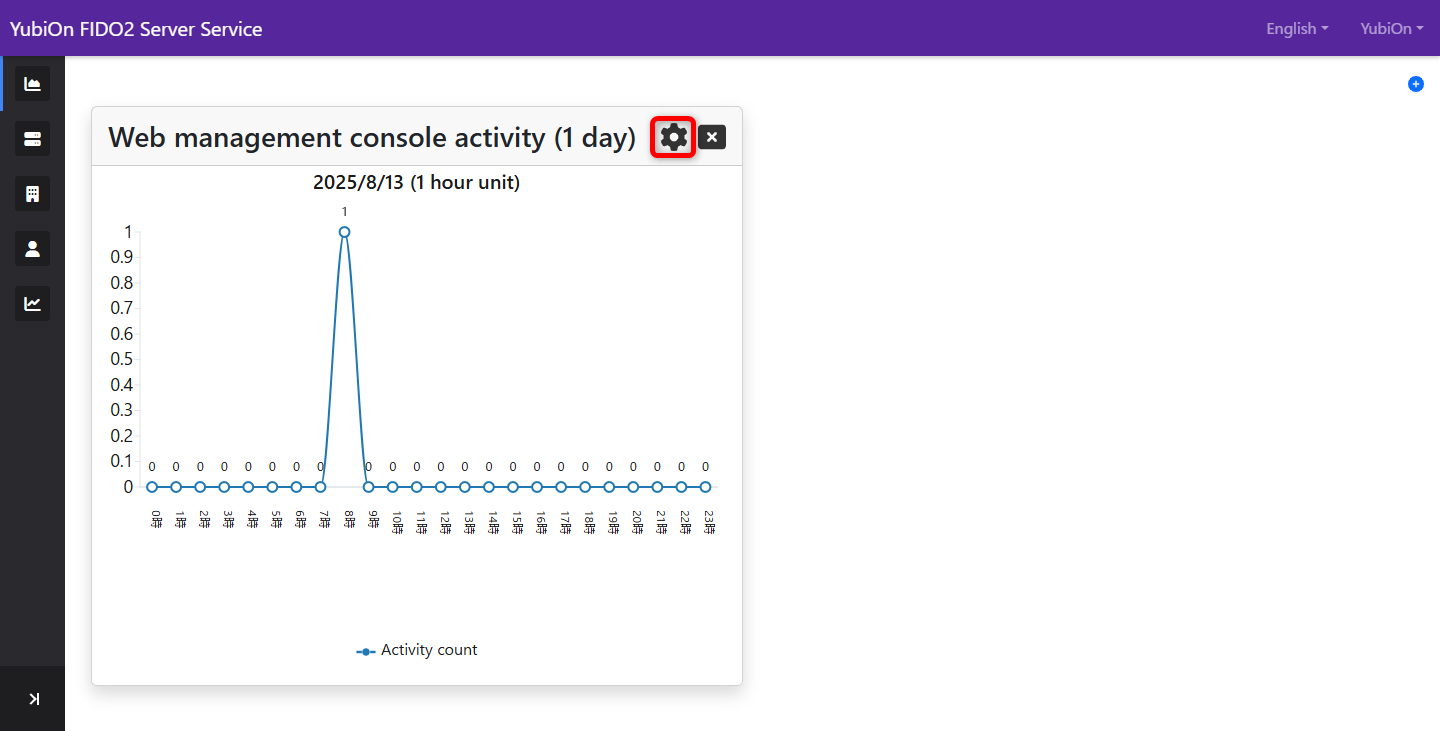

  1. Click on the gear icon in the upper right corner of “Web management console activity”. gear icon gear icon

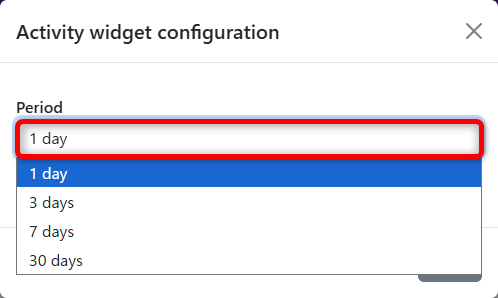

  2. Select the period you wish to reference. select period select period

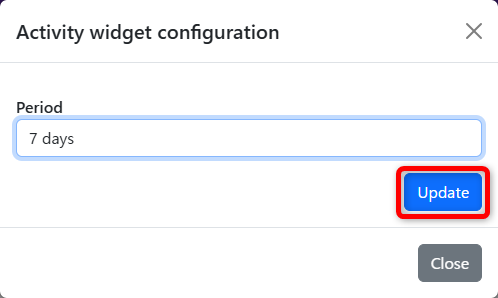

  3. Click on the Update button. update button update button

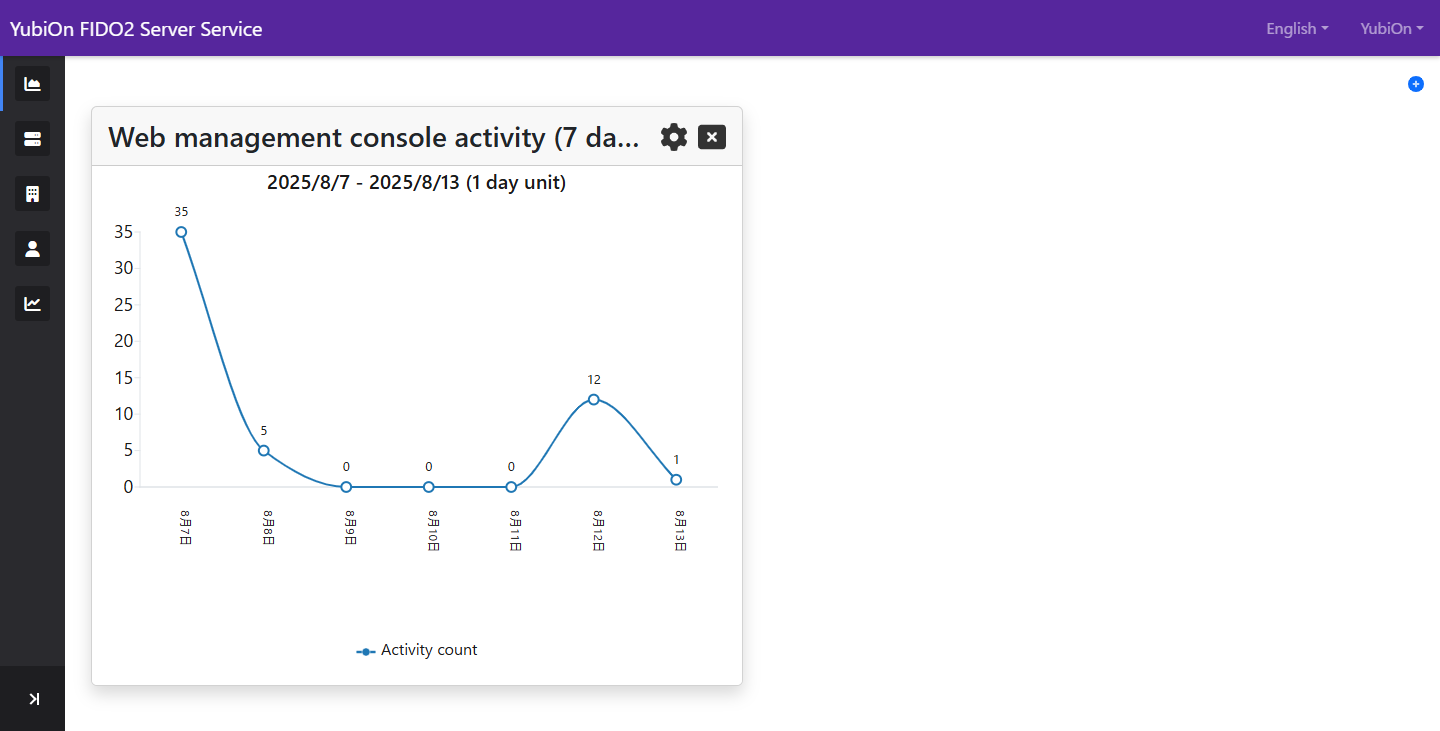

  4. It is displayed in a graph format. graph graph

To hide the activity log

Operation Procedure

Select “Dashboard” from the menu.

  1. Click on the X icon in the upper right corner of “Web management console activity”. 閉じる 閉じる

  2. The “Web management console activity” widget will be removed from the dashboard.
